Honeywell’s industrial flame monitoring products are suited for heavy industry uses, and work in tough environments such as: industrial boilers, cement or lime kilns, Claus reactors, thermal oxidizers, gas turbines and multiple burner applications.

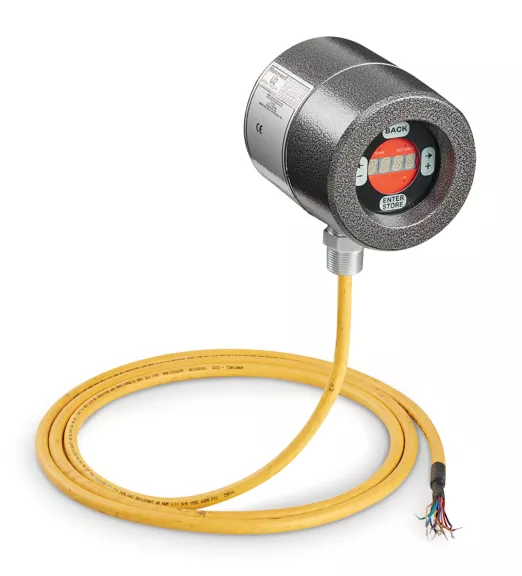

Honeywell IRIS U2-S

The U2-S Series is an all-in-one integrated processor and viewing head system which is uniquely suited for single or multi-burner, multi-fuel and difficult flame detection applications. The all-in-one solution eliminates the need for a separate processor which saves on cabinets and wiring. Multiple models and sensor options meet difficult flame monitoring applications requiring a high level of discrimination. Learn all about the U2-S Series all-in-one integrated processor and viewing head flame detection solution for single or multi-burner, multi-fuel and difficult flame detection applications.

Features

  • Integrated viewing head and signal processor
  • Electronic check (no mechanical shutter) for self-check of the system
  • Independent configuration and adjustable gain settings for each sensor
  • Seven front panel LED status indicators
  • Ten selectable flicker frequency filters for solid state UV and IR sensor (model dependent)
  • Fully programmable using touch screen interface with easy to follow scrolling menu structure
  • Available in quick disconnect or PF versions with factory installed pigtail extension cabl
  • Modbus RS422 communication for use with FlameTools supports 248 loops and 32 loops, respectively

    • Product Specification

    • APPLICATION: Signal Processor with 2 channels and keypad
    • DIMENSIONS (IN.): 4.6 in. wide x 6.1 in. deep x 4.6 in. high
    • MOUNTING: Cabinet mounting tabs
    • ELECTRICAL RATING: 22-26 VDC, 120 mA max
    • APPROVALS, FM, CSA, CE (BS EN298), UKCA, and EAC
    • REQUIRED COMPONENTS: Ultraviolet and/or Infrared Flame Detector
    • APPROVALS, FACTORY APPROVED: Approved (Temperature Range -40 to 70 ºC[CSA])
    • ENCLOSURE: IP66
    • USER INTERFACE: Capacitive TouchWheel with LED Display
    • COMMUNICATIONS: Modbus Compatible

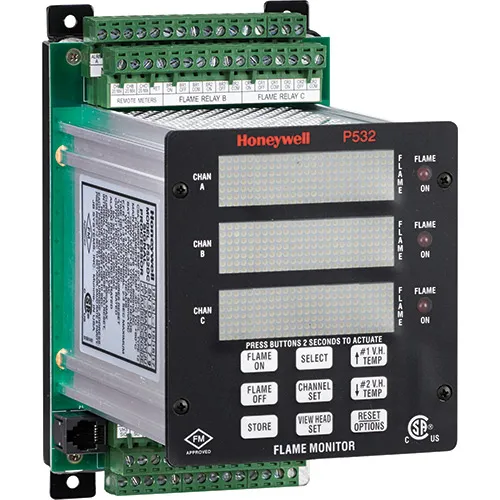

    Honeywell IRIS P532

    Model P532 Signal Processors are Fail – Safe, Self Checking Signal Processors Capable of Monitoring Two S55XBE and One S70X Series Viewing Heads Simultaneously and Can Display UV and IR Flame Count Separately when used with S550BE Viewing Head.

    The Processors Offer Independent Gain Adjustments, and for S552BE and S550BE, Multiple Frequency Settings. P532 are Ideally Suited for Tangentially Fired Boilers Where Two Viewing Heads are Required for Main Burner and S70X for Side or Horn Igniters.

    Features

    • Models Available in AC (P532AC) or DC (P532DC) Input Voltage
    • Front Panel Display with Large, Bright, Three – Colour Alphanumeric Dot Matrix Displays with LED’s
    • P532UI detachable user interface, FlameTools software or PDA with optional interface cable is used for programming
    • Seven front panel LED status indicators
    • Capable of monitoring up to 3 viewing heads simultaneously with independent flame relay and common fault relay contacts output
    • Automatic viewing head detection and error detection
    • Ability to monitor UV and IR separately from one S550BE viewing head
    • Each viewing head can be associated with two sets of configurable files (primary or alternate)
    • Automatic set up functionality (auto gain, auto sequence and auto filter)
    • Marginal alarm relays can be configured to provide a secondary indication if flame count drops below set value
    • Viewing head temperature indication (except with S70X)
    • Modbus RS422 communication for use with FLAMETOOLS-PC or FLAMETOOLS-HMI/U supports 64 loops and 32 loops, respectively

      • Product Specification

      • APPLICATION: Signal Processor with 2 channels and keypad
      • DIMENSIONS (IN.): 4.25 in. wide x 5.8 in. deep x 7.2 in. high
      • USED WITH: S55XB, S55BE, S70X, and S80X Viewing Heads
      • MOUNTING: Cabinet mounting tabs
      • ELECTRICAL RATING: 24 VDC
      • APPROVALS, FM: 7610 SIL 3 “Fit for Use”; IEC61508 Part 1/2/3 CSA: C22.2 No. 205-M1983 CAN/CSA – C22.2 No. 199-M89 (R1999)
      • REQUIRED COMPONENTS: Ultraviolet and/or Infrared Flame Detector
      • APPROVALS, FACTORY APPROVED: Approved (Temperature Range -40° C to 60° C (-40° F to 140° F) [FM] or 0° C to 52° C (32° F to 125° F) [CSA])
      • OUTPUT: 4-20mA
      • KEYPAD: Integrated
      • STATUS MONITORING: LEDs
      • COMMUNICATIONS: Modbus RS422 Compatible

      Honeywell IRIS P522

      P522 signal processors amplify and condition the viewing head signal for a burner management system. Provides 0/4-20mA output signal, 2 SPDT flame relay outputs and 1 SPDT self-check relay output. Connect 2 S55xB/BE viewing heads and channel toggle.

      Features

      • 2 channels
      • Integrated keypad
      • 0/4-20mA output
      • Two SPDT flame relay outputs and one SPDT self-check relay output
      • FM and CSA approved
      • Flame failure response and time delay on set-up
      • Connect 2 viewing heads, monitoring 1 at a time
      • Independent configuration for each viewing head
      • 2 sets of configuration data per viewing head
      • Viewing head temperature indication
      • Modbus and RS422 protocol compatible
      • NEMA 1 Enclosure Rating
      Product Specification
      • APPLICATION: Signal Processor with 2 channels and keypad
      • DIMENSIONS (IN.): 4.3 in. wide x 6.4 in. deep x 6.7 in. high
      • DIMENSIONS (MM.): 109 mm wide x 162 mm deep x 170 mm high
      • USED WITH: CS550B, CS552B, CS556B Viewing Heads
      • MOUNTING: Cabinet mounting tabs
      • ELECTRICAL RATING: 22-26 Vdc
      • APPROVALS, CANADIAN STANDARD ASSOCIATION: Approved
      • REQUIRED COMPONENTS: Ultraviolet and/or Infrared Flame Detector
      • APPROVALS, FACTORY APPROVED: Approved (Temperature Range 32 to 122 F; 0 to 50 C)
      • OUTPUT: 4-20mA
      • KEYPAD: Integrated
      • STATUS MONITORING: LEDs
      • COMMUNICATIONS: ModBus and RS422 Compatible

      Honeywell IRIS S550BE

      The S550B/BE is a UV/IR viewing head/flame detector. It monitors the UV and IR components and has two displays, quick disconnect plug, or pipe fitting connection, UV and IR gain settings, IR high pass filter selection, flame on/off settings and a NEMA 4X/IP67 enclosure rating.

      Honeywell’s industrial flame monitoring products are suited for heavy industry uses, and work in tough environments such as: industrial boilers, cement or lime kilns, Claus reactors, thermal oxidizers, gas turbines and multiple burner applications.

      Features

      • Immune of X-Rays and Gamma Rays
      • Mount in any orientation
      • IR gain selection of 0-699, adjusted through signal processor
      • UV gain selection of 0-99, adjusted through signal processor
      • 2 digital displays
      • Quick disconnect plug or 1/2 in. NPT pipe fitting connection with pigtail
      • Parameters stored in signal processor EEPROM
      • Ultraviolet and infrared embedded sensors
      • Ambient Temperature: -40F to +158F (-40C to +70C)
      • 22-26 VDC supplied by signal processor
      • NEMA 4X / IP67 Enclosure

      Product Specification

      • APPLICATION: Flame Detector
      • DIMENSIONS (IN.): 4.1 in. wide x 8.1 in. deep x 5.4 in. high
      • DIMENSIONS (MM.): 104 mm wide x 206 mm deep x 137 mm high
      • USED WITH: RP532A, RP532D, RP531A, RP531D, RP522A, RP522D Signal Processors
      • ELECTRICAL RATING: 22 to 26Vdc from signal processor
      • APPROVALS, CANADIAN STANDARD ASSOCIATION: Approved
      • ELECTRICAL CONNECTIONS: Quick disconnect plug
      • APPROVALS, FACTORY MUTUAL: Approved
      • AMBIENT TEMPERATURE RANGE (F): -40 to 158 F
      • AMBIENT TEMPERATURE RANGE (C): -40 C to +70 C
      • APPROVALS, OTHERS: IEC: Approved
      • NEMA RATING: 4X
      • SIGHT PIPE (NPT): 1 in.
      • PURGE AIR PIPE(NPT): 1/2 in.
      • SHUTTER: Electronic of IR only
      • UV GAIN ADJUSTMENT: 0-99
      • IR GAIN ADJUSTMENT: 0-699
      • DIGITAL DISPLAYS: Yes (2)
      • ENVIRONMENTAL, ELECTRICAL OR INGRESS PROTECTION RATING: IP67

      Honeywell IRIS S556

      The S556 viewing head/flame detectors feature a digital display, quick disconnect plug, gain setting, flame on/off settings for added discrimination and NEMA 4X/IP67 enclosure rating. Perfect for difficult sighting and multiple burners.

      Features

      • Immune of X-Rays and Gamma Rays
      • Mount in any orientation
      • With Digital display
      • Quick disconnect plug
      • Ambient Temperature: -40F to +158F(-40C to +70C)
      • 22-26 VDC supplied by signal processor
      • Enclosure NEMA 4X / IP67 Certified
      • Used with RP532A, RP532D, RP531A, RP531D, RP522A, RP522D signal processors

      Product Specification

      • APPLICATION: Flame Detector
      • DIMENSIONS (IN.): 4.1 in. wide x 8.1 in. deep x 5.4 in. high
      • DIMENSIONS (MM.): 104 mm wide x 206 mm deep x 137 mm high
      • USED WITH: RP532A, RP532D, RP531A, RP531D, RP522A, RP522D Signal Processors
      • ELECTRICAL RATING: 22 to 26Vdc from signal processor
      • APPROVALS, CANADIAN STANDARD ASSOCIATION: Approved
      • ELECTRICAL CONNECTIONS: Quick disconnect plug
      • APPROVALS, FACTORY MUTUAL: Approved
      • TYPE: UV Viewing Head with Digital Display
      • AMBIENT TEMPERATURE RANGE (F): -40 to 158 F
      • AMBIENT TEMPERATURE RANGE (C): -40 C to +70 C
      • APPROVALS, OTHERS: IEC: Approved
      • NEMA RATING: 4X
      • SIGHT PIPE (NPT): 1 in.
      • PURGE AIR PIPE(NPT): 1/2 in.
      • UV GAIN ADJUSTMENT: 0-99
      • DIGITAL DISPLAYS: Yes (1)
      • ENVIRONMENTAL, ELECTRICAL OR INGRESS PROTECTION RATING: IP67

      Honeywell IRIS S806

      The compact viewing head/flame detector, detects the presence or absence of flame and features a quick disconnect plug with 2 embedded indicator LEDs, 15-foot cable, mounting block with over center latches, 1-9 gain setting and flame on/off settings.

      Features

      • 2 channels
      • Mounts in any orientation
      • Gain setting 1-9
      • Quick disconnect plug with embedded indicator LEDs and 15-foot cable
      • Ambient Temperature rated: -40F to +185F (-40C to +85C)
      • 22-26 VDC supplied by signal processor
      • NEMA 4X / IP67 with tightened connector and UV cable protection Certified

      Product Specification

      • APPLICATION: Flame Detector
      • DIMENSIONS (IN.): 1.8 in. wide x 9.2 in. deep x 1.8 in. hig
      • DIMENSIONS (MM.): 46 mm wide x 234 mm deep x 46 mm high
      • USED WITH: P532AC, P532DC, P531AC, P531DC, 700ACSP, 700DCSP signal processors
      • MOUNTING: Any orientation
      • ELECTRICAL RATING: 22 to 26Vdc from signal processor
      • APPROVALS, CANADIAN STANDARD ASSOCIATION: Certified
      • ELECTRICAL CONNECTIONS: Quick disconnect plug
      • APPROVALS, FACTORY MUTUAL: Approved
      • TYPE: UV Compact viewing head with 15-foot cable
      • AMBIENT TEMPERATURE RANGE (F): -40 to 185 F
      • AMBIENT TEMPERATURE RANGE (C): -40 C to +85 C
      • NEMA RATING: 4X
      • SIGHT PIPE (NPT): 1/2 in.
      • PURGE AIR PIPE(NPT): 1/4 in.
      • SHUTTER: Electronic
      • UV GAIN ADJUSTMENT: 40552
      • ENVIRONMENTAL, ELECTRICAL OR INGRESS PROTECTION RATING: IP67

      Honeywell IRIS Watchdog III

      S256B is a UV flare stack viewing head/flame detector, that detects the presence or absence of flame at the flare stack tip. Used for continuous UV flare stack monitoring to ensure no unburned toxic or waste gas releases into the atmosphere.

      Features

      • Immune of X-Rays and Gamma Rays
      • Solar blind
      • Electronic UV shutter
      • Ground mounted, up to 1000 feet away from flare stack tip
      • UV gain selection of 0-99
      • Digital display
      • Quick disconnect plug
      • Easy to install with no plant shutdown
      • NEMA 4X / IP67 enclosure rating
      • Ambient temperature: -40F to +140F (-40C to +70C)
      • 22-26 VDC supplied by signal processor
      • CSA Approved
      • Used with RP222A signal processor

      Product Specification

      • APPLICATION: Flame Detector
      • DIMENSIONS (IN.): 3.7 in. wide x 20.3 in. deep x 13.7 in. high
      • DIMENSIONS (MM.): 94 mm wide x 516 mm deep x 348 mm deep
      • USED WITH: RP222A Signal Processor
      • MOUNTING: Ground Mounted
      • ELECTRICAL RATING: 22 to 26Vdc from signal processor
      • APPROVALS, CANADIAN STANDARD ASSOCIATION: Approved
      • AMBIENT TEMPERATURE RANGE (F): -40 to 140 F
      • AMBIENT TEMPERATURE RANGE (C): -40 C to +60 C
      • NEMA RATING: 4X
      • UV GAIN ADJUSTMENT: 0-99
      • DIGITAL DISPLAYS: Yes (1)
      • ENVIRONMENTAL, ELECTRICAL OR INGRESS PROTECTION RATING: IP67
