Federal Signal Audible Horns and Visual Strobes Beacons

.

At Federal Signal, safety isn’t just a priority; it’s our purpose. As a leader in innovative signaling, communication, and security systems, we’re committed to protecting workers, first responders, and communities. With relentless testing, smarter design, and unmatched reliability, we deliver solutions that work when it matters most. That’s Federal Signal Strength.

.

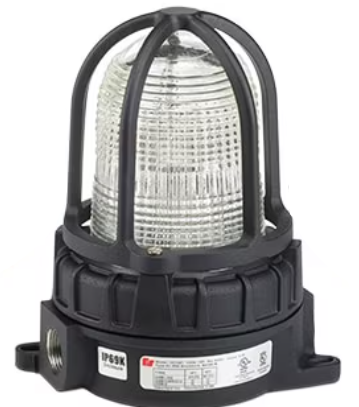

191XL Hazardous Location

Division Listed LED Light

  • Available in 24VAC/DC, 120-240VAC and 277VAC
  • Five lamp/lens colors: Amber, Blue, Clear, Green and Red
  • Flashing mode standard, configurable to steady-burn
  • 50,000 hour, vibration-resistant LED lamp
  • Dome guard included
  • Available in 3/4-inch NPT pipe mount surface mount
  • Type 4X, IP66 enclosure
  • IP69K compliant
  • Marine Rated
  • UL Listed and cUL Listed for Class I, Division 2, Groups A, B, C and D; Class II, Division 1, Groups E, F and G; Class III

.

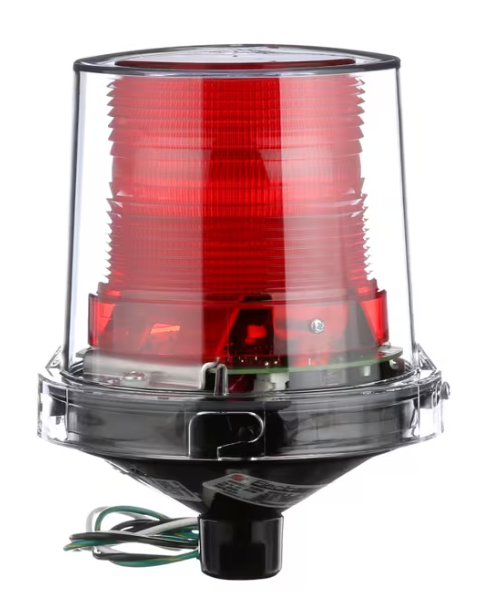

225XL Hazardous Location LED Steady/Flashing Light

  • Available in 24VAC/DC and 120-240VAC
  • Five lamp/lens colors: Amber, Blue, Clear, Green and Red
  • Flashing mode standard, configurable to steady-burn
  • 50,000 hour, vibration-resistant LED lamp
  • 1/2-inch NPT pipe mount
  • Type 4X, IP66 enclosure
  • IP69K compliant
  • Marine Listed
  • UL and cUL for Class I, Division 2, Groups A, B, C and D; Class II Division 2, Groups F and G; Class III
  • NSF Certified

.

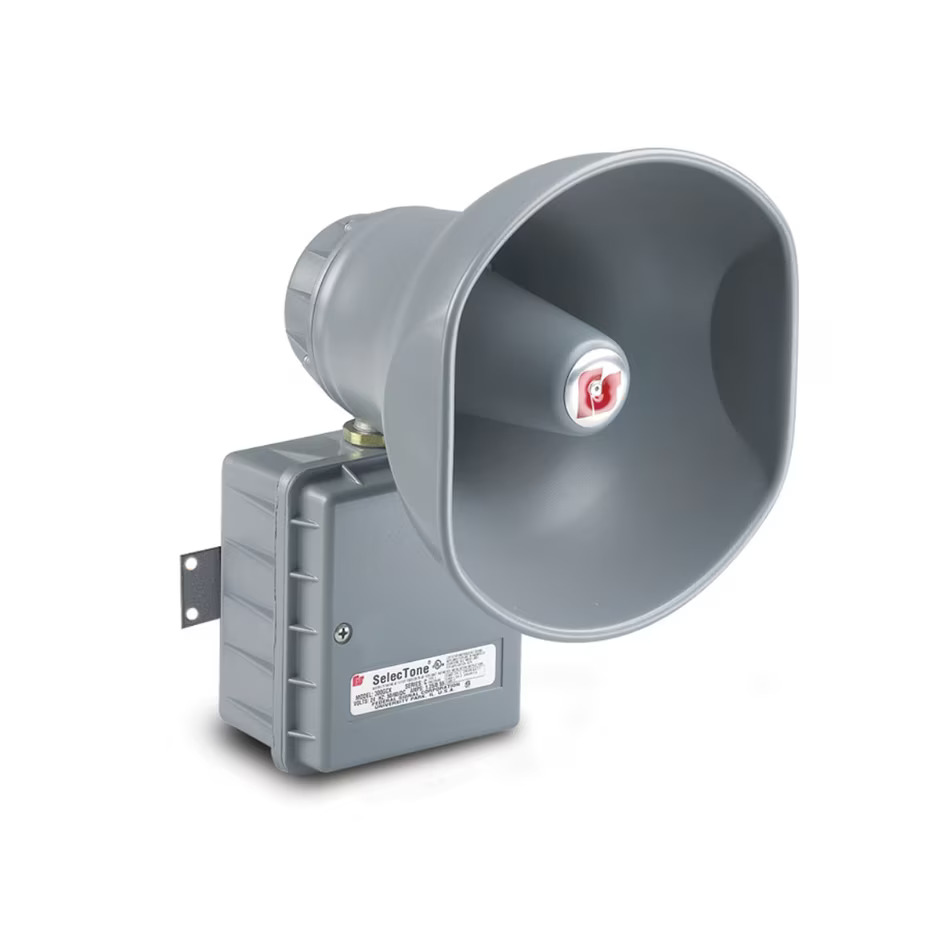

300GCX Hazardous Location Amplified Speaker

  • Available in 24VAC/DC, 120VAC and 240VAC
  • Reliable, solid-state circuitry
  • Digital signal amplification
  • Fused input and output
  • Built-in gain control, adjustable between 0 dBa to 110 dBa @ 10′ (0 dBa to 120 dBa @ 1m)
  • Cast copper free aluminum housing, spun aluminum projector
  • Type 4X, IP66 enclosure
  • IP69K compliant
  • Indoor/outdoor use
  • CSFM Approved
  • UL and cUL Listed for Class I, Division 2, Groups A, B, C, and D; Class II, Division 2, Groups F and G; Class III

.

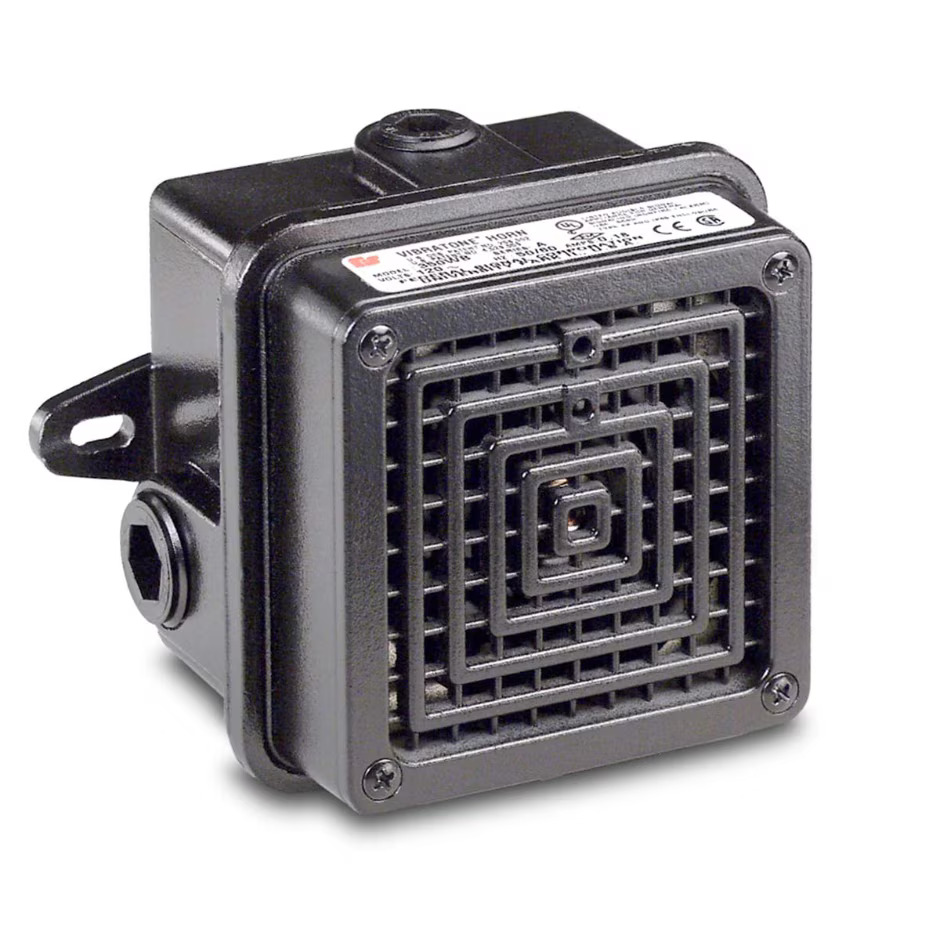

350WBX Vibratone® Hazardous Location Horn

  • Available in 120VAC and 240VAC
  • Coded or sustained tones
  • Produces 100 dBa @ 10′ (110 dBa @ 1m)
  • Fuse terminal block provided for field wiring
  • Surface, flush or semi-flush mounting
  • Indoor/Outdoor use
  • Type 4X, IP65 enclosure
  • IP69K compliant
  • CSA Certified
  • UL and cUL Listed for Class I, Division 2, Groups A, B, C, and D; Class II, Division 2, Groups F and G; Class III

.

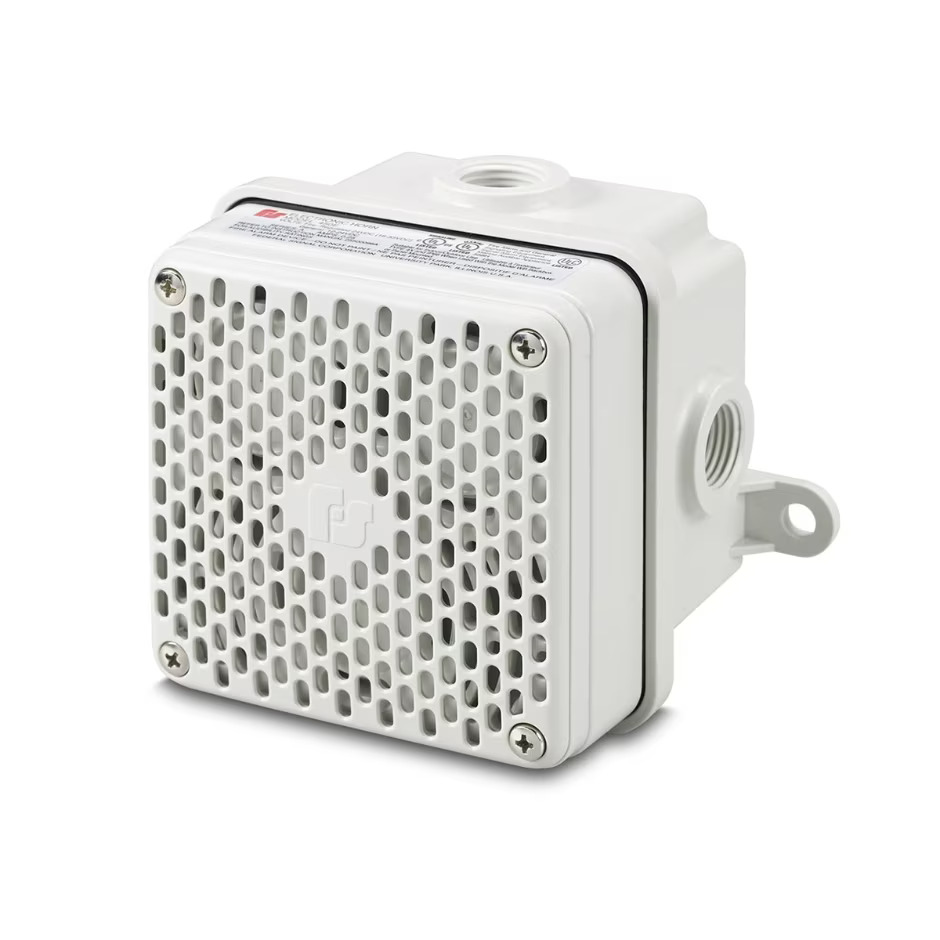

450EWBX Vibratone® Hazardous Location Electronic Horn

  • No duty cycle
  • Four wire terminal block and supervisory diode
  • No detectable RF emissions in a 30-1000 MHz frequency range
  • Type 4X enclosure
  • IP69K compliant
  • Marine Rated
  • UL and cUL for Class I, Division 2, Groups A, B, C, and D; Class II, Division 2, Groups F and G; Class III
  • 450E horn is UL and ULC Canadian Listed for Fire Alarm use

.

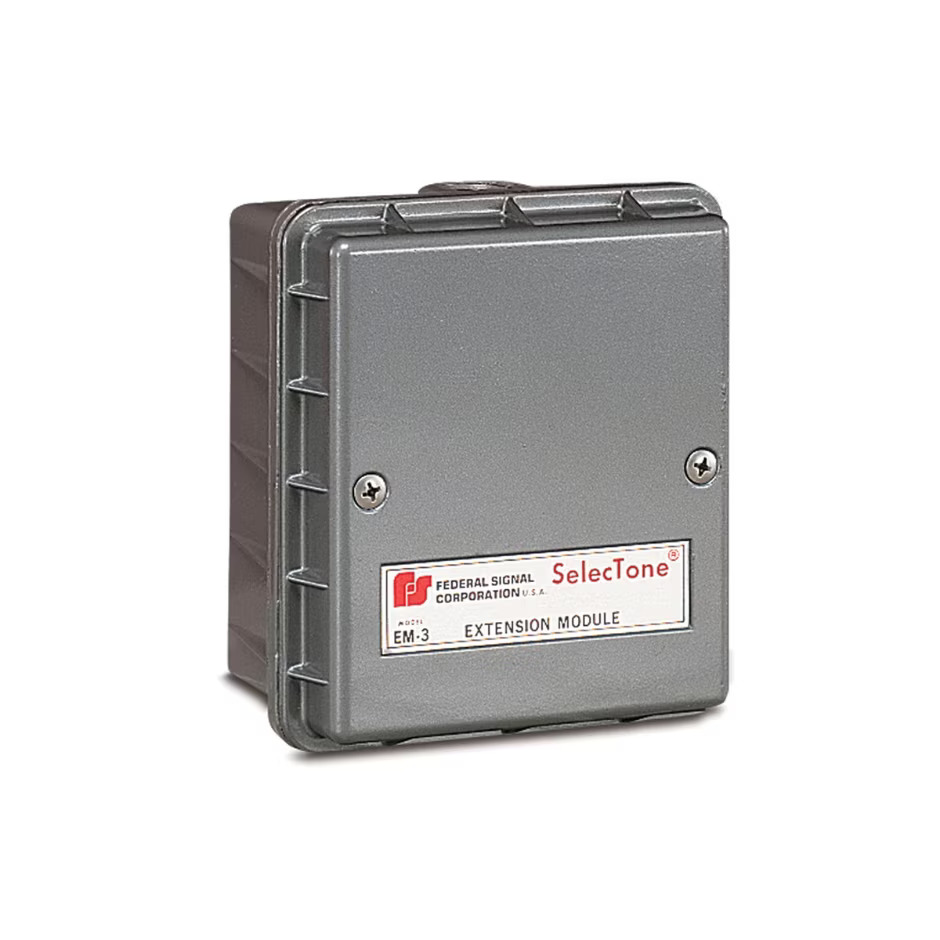

EM3 SelecTone® Extension Module

  • Reliable solid-state circuitry
  • Indoor or outdoor use
  • No separate power supply required
  • Mountable up to 100 feet away
  • Produces three tones with the same speaker or amplifier
  • Type 3R enclosure
  • UL and cUL Listed Connector Board Interface

.

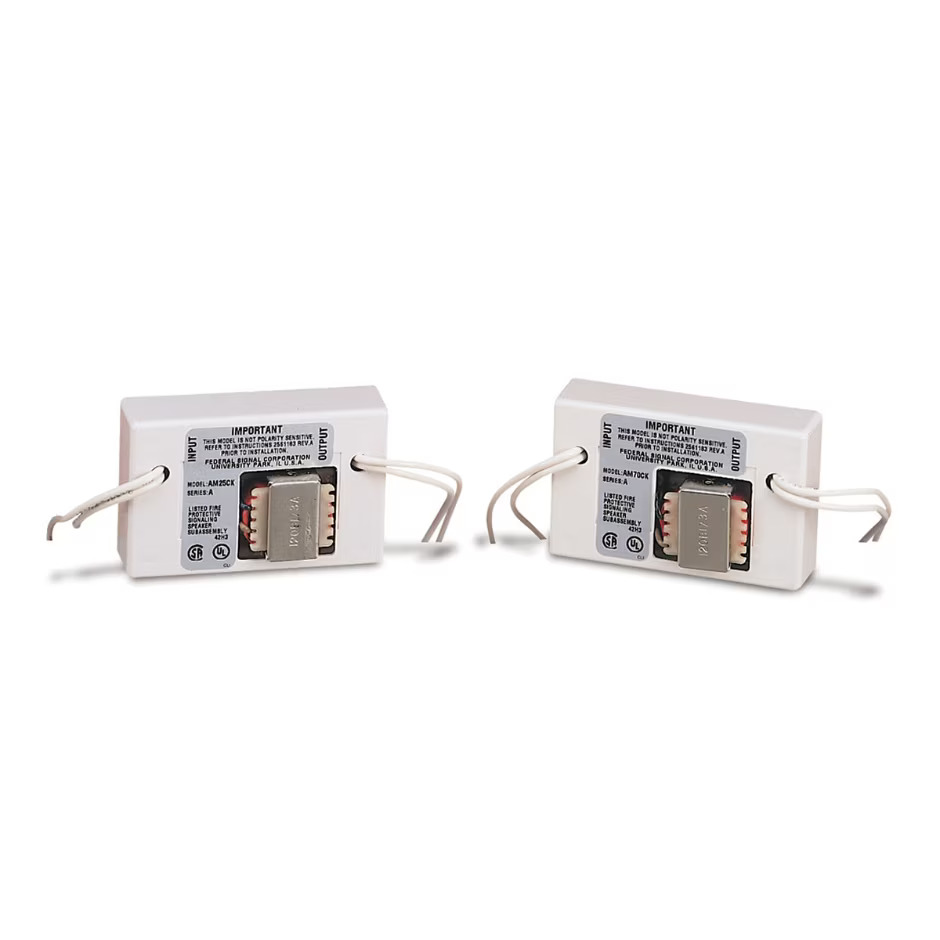

SelecTone® Connector Kits

  • Interfaces SelecTone® amplified speakers with an existing paging system
  • Works in 25 or 70 Vrms systems
  • Creates a “balanced line” SelecTone® System
  • Models AM25CK and AM70CK are CSFM Approved
  • UL and cUL

.

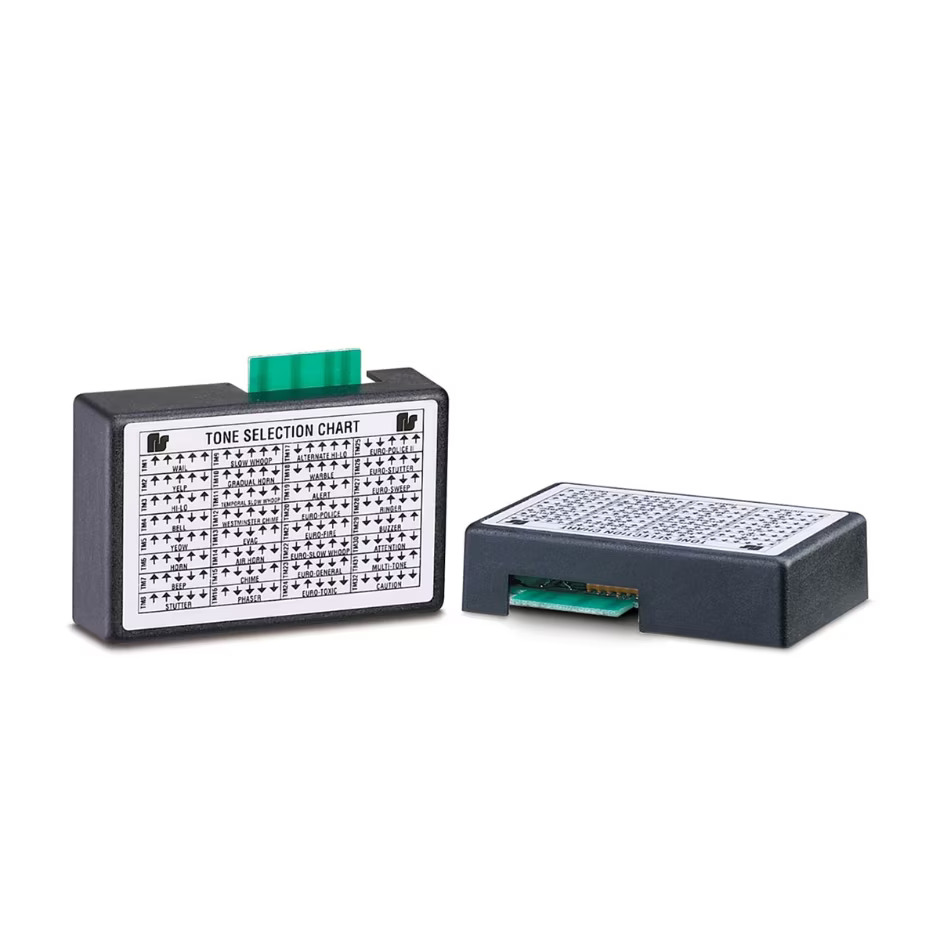

UTM SelecTone® Universal Tone Module

  • 32 switchable tones
  • Compatible with all SelecTone® equipment
  • Plug-in installation
  • RFI and EMI shielded
  • CSFM Approved
  • UL and cUL
