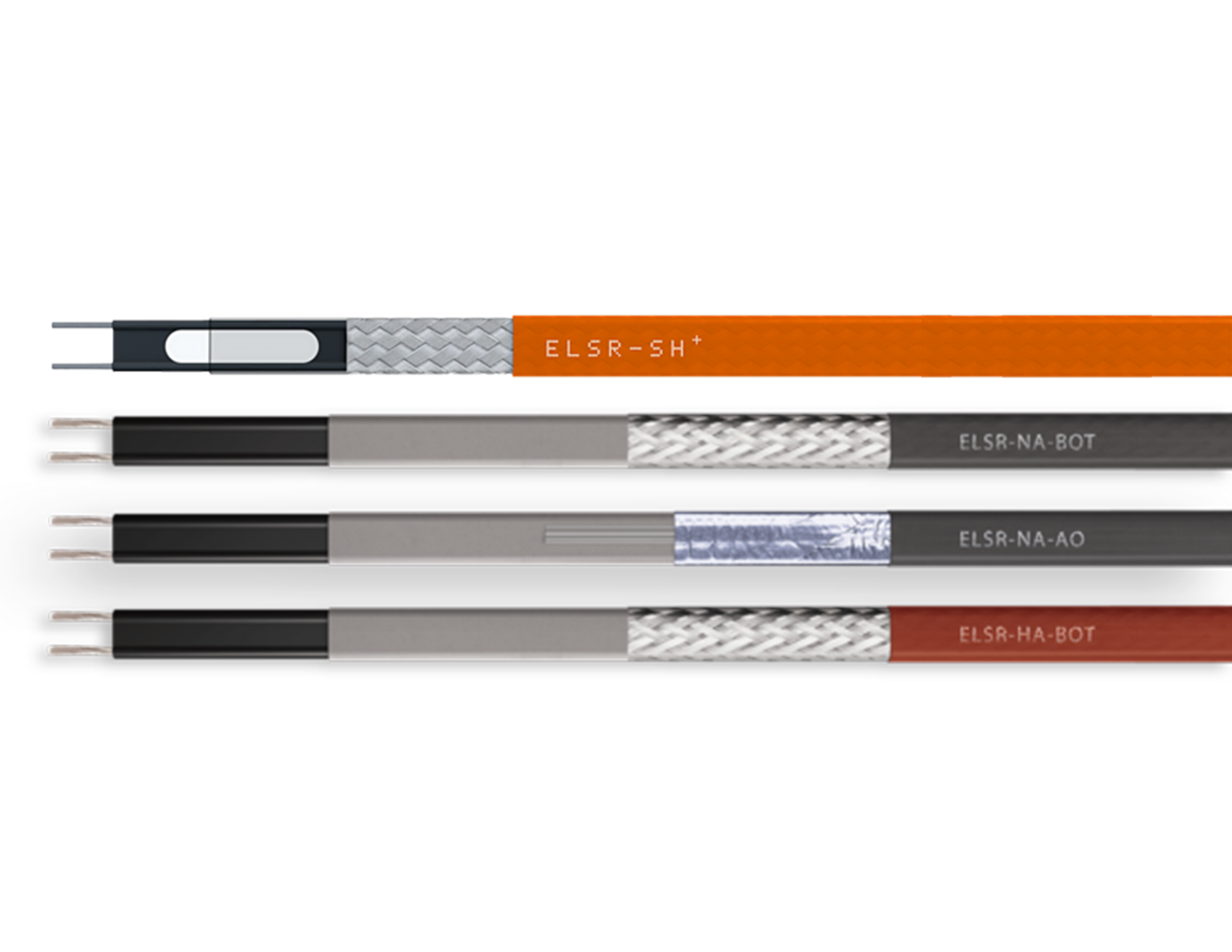

Self-regulating heating cables – ELSR-XX

Self-regulating heat cables are a part of our wide product range. Whether as freeze prevention to keep your pipeline or medium frost-free or for temperature maintenance – we have got the right solution for your application. With our ELSR-series (ELtherm-Self-Regulating) we offer you a self-limiting heating cable for different ranges and temperature classes. The main advantage: self-regulating heat cables can be cut to length off the roll and have a constant power per meter. Furthermore, they are very easy to install.

Low Temperature: Up to 80 °C
Medium Temperature: Up to 110 °C
High Temperature: Up to 250 °C

Selection Guide

ELSR-NA

Fields of application:

Chemistry and Petrochemistry
Freeze prevention
Food Processing Industry
Automotive
Oil and Gas Industry
Pipelines
LNG
Vessels and tanks
Heat tracing of instrumentation

Technical Benefits:

Multiple nominal outputs
UV-resistant
Moisture proof
Approved for use in hazardous areas
Can be cut to length

Technical specifications:

Minimum start up temperature: – 30 °C
Maximum operating temperature, energized: 60 °C
Maximum operating temperature, de-energized: 80 °C
Nominal voltage: 230/120 V
Bending radius, min.: 25 mm
Installation temp, min.: -45 °C

Manual

Data Sheet

ELSR-HA

Fields of application:

Cyrogenic Storage Tanks
Chemistry and Petrochemistry
Automotive
Heat tracing of instrumentation
Food Processing Industry
Freeze prevention
LNG
Oil and Gas Industry
Pipelines
Vessels and tanks

Technical Benefits:

Various nominal outputs
Can be cut to length
Moisture proof
Highly resistant to chemicals and corrosive environments
Approved for use in hazardous areas

Technical specifications:

Minimum start up temperature: – 30 °C
Maximum operating temperature, energized: 120 °C
Maximum operating temperature, de-energize: 150 °C continuous, 200 °C de-energized for 1000h cumulative
Nominal voltage (variable): 120 V AC / 240 V AC
Bending radius, min.: 25 mm
Installation temperature, min.: – 45 °C

Manual

Data Sheet

ELSR-SH+

Fields of application:

Freeze prevention
Temperature maintenance
Silos, vessels, tanks
Valves, pumps
Chemistry and Petrochemistry
Oil and Gas Industry
Power plants
Water and sanitation utilities

Technical Benefits:

Seven nominal outputs
Moisture proof
Resistant to chemicals
For use in hazardous areas.

Technical specifications:

Maximum maintain temperature: 185 °C
Maximum exposure temp, de-energized: 250 °C
Nominal voltage: 230/120 V
Bending radius, min.: 25 mm
Installation temp, min.: -60 °C

Manual

Data Sheet

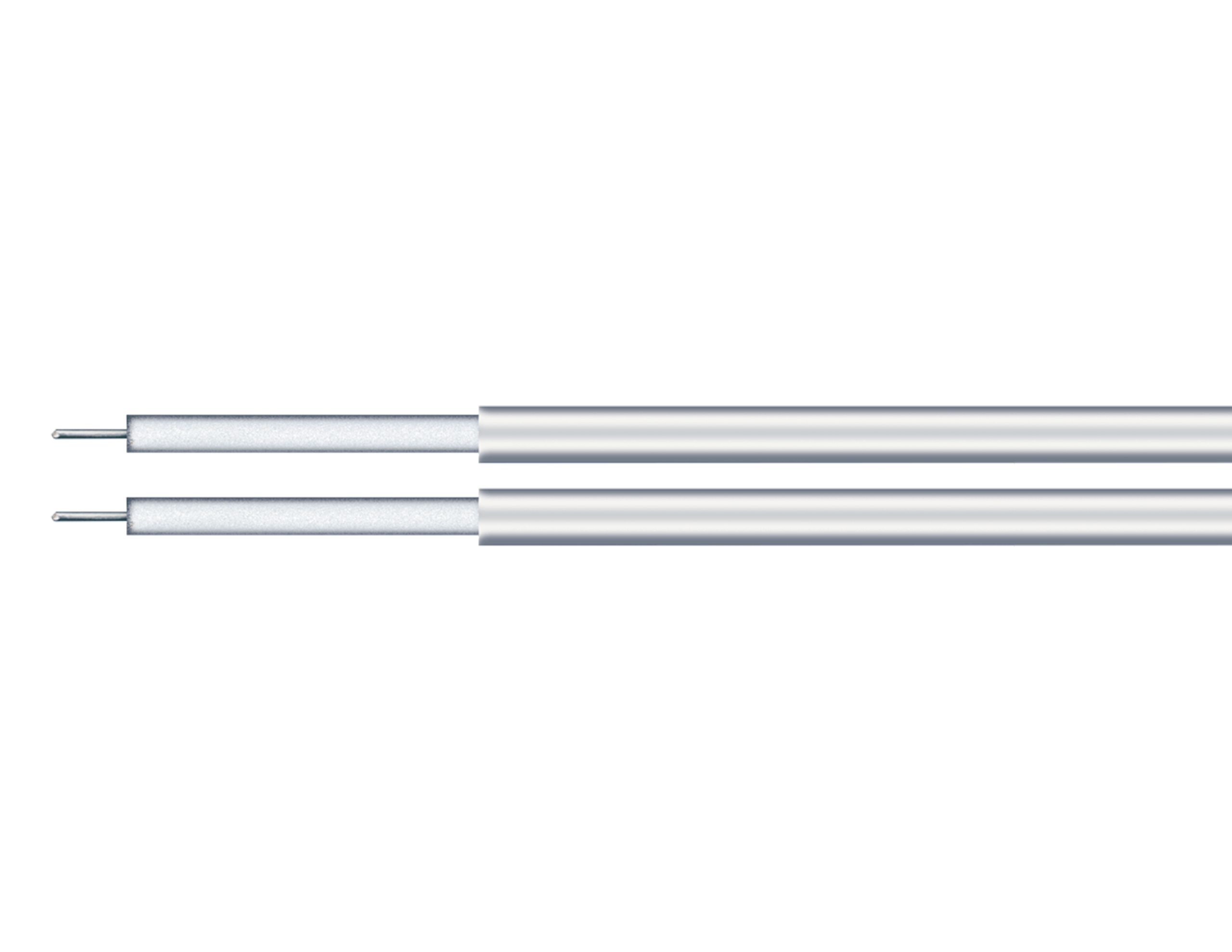

Mineral insulated heating cables – ELK-MI-XX

MI Cables are used to cover applications that require high temperatures (e.g. chemical, petrochemical, oil and gas industries). Unlike resistance heating cables or self-regulating heating cables, mineral insulated heating cables can withstand temperatures up to 1000°C. In addition, the moisture and chemical resistant MI cable can be used for process heating and temperature maintenance on pipelines, vessels, cryogenic storage tanks, power plants, machinery and equipment. The “Clean Laser Seal” technology also guarantees the highest resistance to various chemicals.
